Description
INTRODUCTION

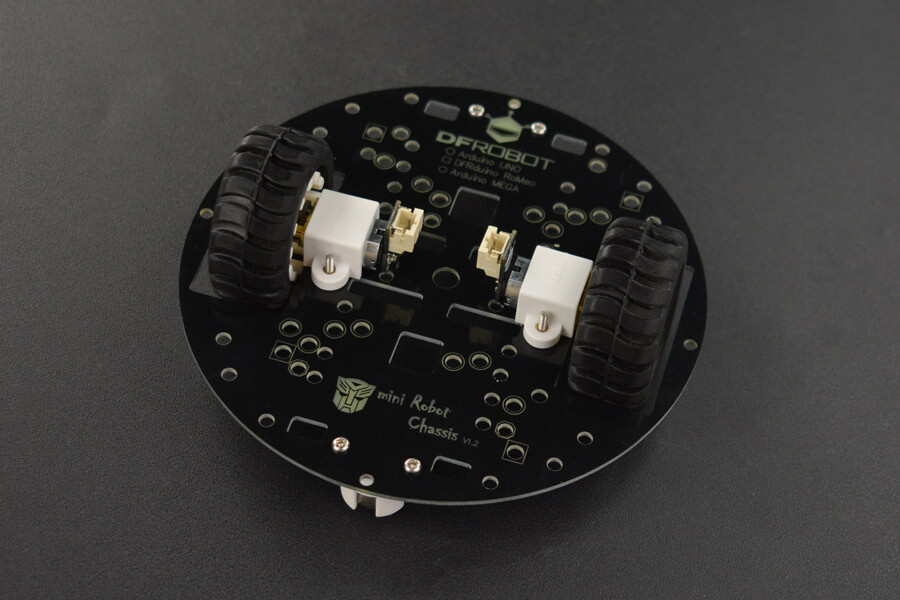

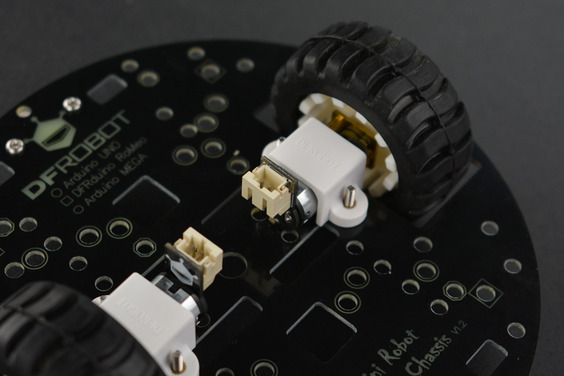

2WD miniQ robotic platform is specially designed for students and hobbyists. It’s versatile and small, suitable for most indoor applications. It features high quality and powerful metal gear motors which make it a speedy robot. It is ideal for maze competitions and educational courses and is fairly easy to assemble. Only requires 8 screws to get the job done!
If you are planning to get started building a robot as a proof of concept, its small body and light weight make it a great choice. This robot can easily be used and tested on a desk or small area, easily assembled and expanded. An extra set of standoff and screws might come in handy. Its round shape helps when moving around objects, avoiding obstruction. The platform has convenient drillings that help place sensors or other screwable parts like custom-designed casing.

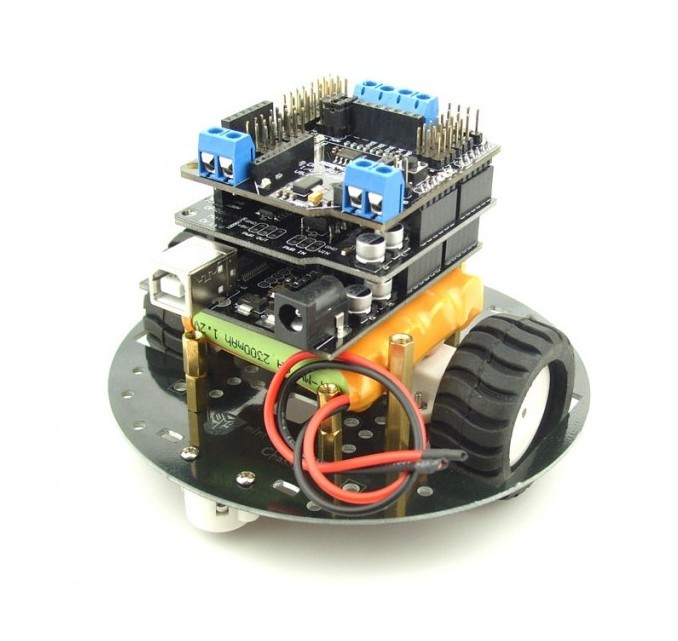

To drive this robot, you may need the Romeo ESp32-S3 board or standard Arduino with a motor shield.
SPECIFICATION
Chassis Specification
- Chassis Diameter:122mm (4.8”)
- Ground Clearance: 15mm (0.6”)
- Wheel Diameter:42mm (1.65”)
Motor Specification
- 13000 rpm @ No load
- 50:1 Gear ratio
- 260 rpm @ 6V
- 40mA @ 6V
- 360mA stall current @ 6V
- 10 oz inches torque @ 6V

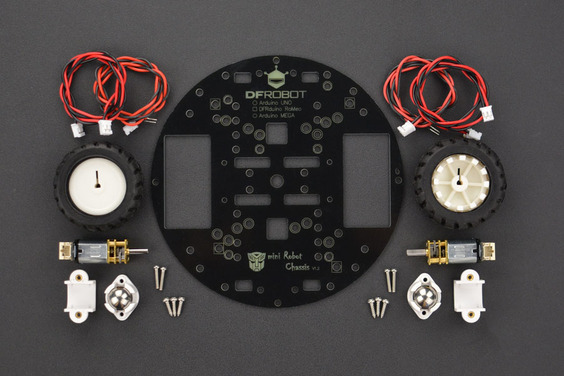

MATERIAL LIST
- Micro Metal Gear Motor with Connector (75:1) x2
- Rubber Wheels x2
- Universal ball caster Wheels x2
- MiniQ 2WD Chassis x1
- Motor brackets x2
- Screws x1set
