Description

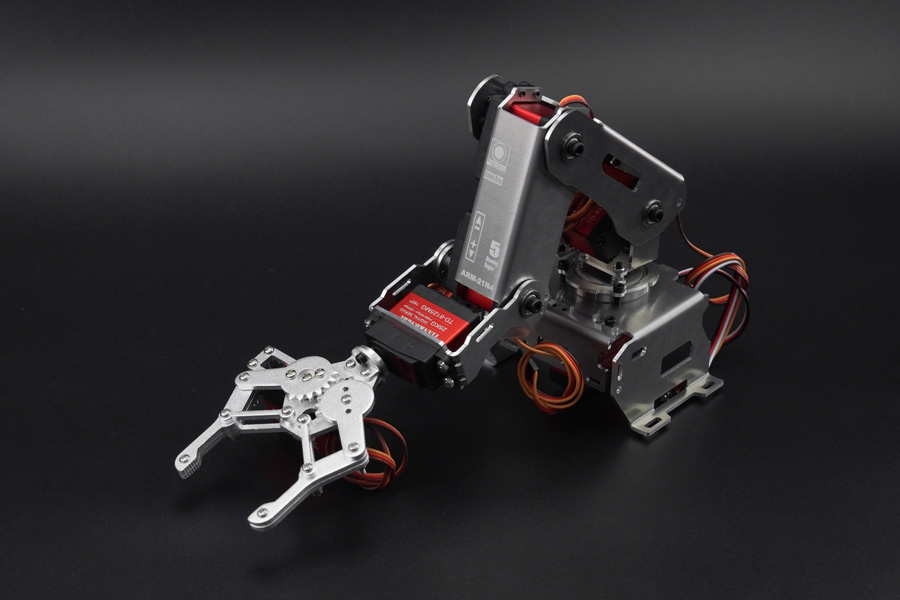

Introducing the enhanced 6-DOF Robotic Arm V2, meticulously refined for enhanced efficiency and space-saving prowess. This robotic arm showcases premium 25kg torque servo motors, resilient aluminium alloy construction, and an expanded power supply spectrum. Despite its streamlined design and reduced weight, it excels at managing larger payloads with remarkable efficiency. Tailored for a myriad of applications including scientific research, kinematics education, and forays into automation control, it represents the pinnacle of versatility and performance.
Ready to Use, No Installation Required
The V2 version of the robotic arm is fully assembled and calibrated at the factory, eliminating the need for cumbersome installation. It is ready to use right out of the box. This significant change allows you to focus all your energy on knowledge in your field of study without the hassle of complex robotic arm installation.
Safety Precautions:
- Robotic Arm Fixation: Before powering on, securely fasten the base of the robotic arm in a flat position using screws to prevent tipping and potential harm during mechanical movement.
- Personal Safety: Do not place hands within the range of the robotic arm’s movement to avoid pinching injuries.
- Servo Motor Operation: Servo motors should not be locked for an extended period, as it may cause damage to the servo motor and the driver board, or even cause personal injury.
- Power Supply Safety: The rated voltage for this product is 5V, with a power supply range of 4.8-8.4V. Operating below or exceeding this voltage range may cause damage to the servo motors, power supply, and driver board.
- Motor Power: This product employs six servo motor drives, with each servo motor rated at 210mA and a stall current of up to 3400mA. Insufficient power supply may lead to abnormal operation of the robotic arm, servo motor damage, and other related issues.
FEATURES:
- Factory Fully Assembled, No Installation Required
- All Aluminum Alloy Mechanical Components, Metal Surface Stripes and Oxidation Treatment
- 25kg High-Torque High-Quality Servo Motors
- Metal Ball Bearings
- Metal Servo Disc
- Additional Delivery of Spare Screws Kit
- Additional Delivery of Servo Extension Cables
SPECIFICATION
Status Parameters
- Installation Status: Fully installed
- Degrees of Freedom: 6 degrees of freedom
Power Parameters
- Power Supply Range: DC 4.4V-8.4V
- Power Consumption: >2000mA
- Rated Voltage: 5V
Mechanical Specifications
- Arm Part Material: 2mm Aluminum Alloy/Brushed Oxidation/Natural Color
- Gripper Part Material: 3mm Aluminum Alloy/Sandblasted Oxidation/Natural Color
- Servo Horn: Aluminum Alloy
- Bearings: Metal Rolling Bearings
Base Servo Motor Specifications
- Model: TD-8125MG
- Rotation Angle: 270 degrees
- Static Current: 40mA
- No-load Current: Typical 210mA, Maximum 260mA
- Stall Current: Typical 2600mA, Maximum 3400mA
- Stall Torque: Typical 23.5kg.cm, Maximum 26.8kg.cm
- PWM Control Range: 500us-2500us (0-270 degrees), Midpoint 1500us
- Quantity: ×1

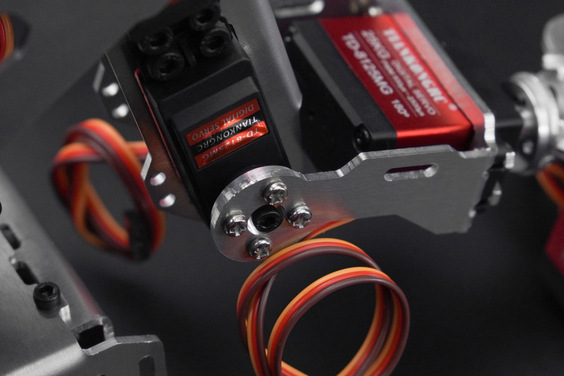

Upper Arm, Middle Arm, Forearm, Gripper Servo Motor Specifications
- Model: TD-8125MG
- Rotation Angle: 180 degrees
- Static Current: 40mA
- No-load Current: Typical 210mA, Maximum 260mA
- Stall Current: Typical 2600mA, Maximum 3400mA
- Stall Torque: Typical 23.5kg.cm, Maximum 26.8kg.cm
- PWM Control Range: 500us-2500us (0-180 degrees), Midpoint 1500us
- Quantity: ×5
Other Specifications
- Product Dimensions: Approximately 37cm × 11cm × 12cm (arm extended to the farthest end)
- Product Weight: 950g (±100g)

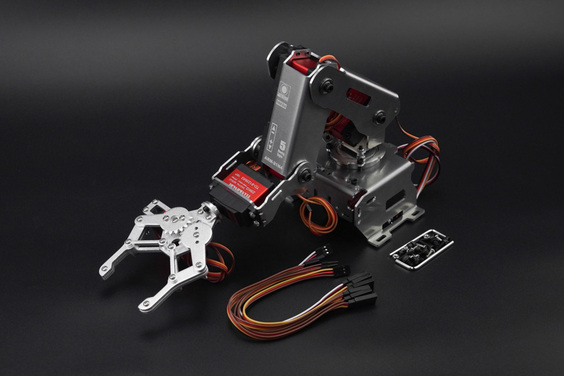

What you get in the Box:
- 6-DOF Robotic Arm V2(Pre-Assembled) ×1

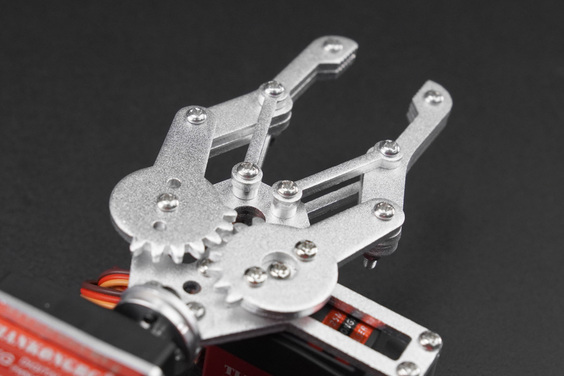

- Mechanical Gripper (Installed on the Robotic Arm) ×1
- Spare Screws Kit ×1
- Spare Allen Wrench ×2
- Servo Extension Cables ×6
