Description

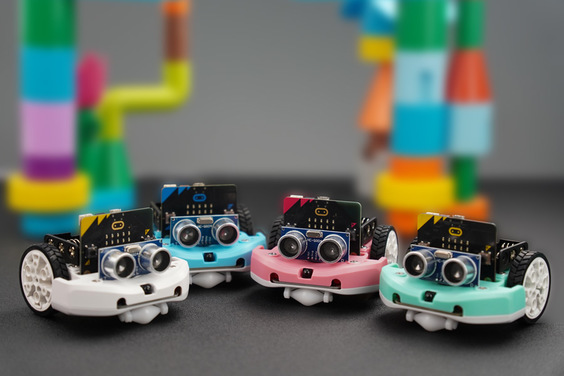

Maqueen Lite is a STEAM educational programming robot. Despite a mini-body, it comes with an exquisite appearance and inherits the playability and simple operation of micro:bit. Besides, there are housings with four lively colours: red, green, blue, and grey designed for Maqueen Lite, which makes it more popular with kids.
Maqueen Lite works well with both micro:bit V1 and V2 and integrates rich peripherals like ultrasonic ranging sensor, IR receiver, IR line-tracking sensor, LED car lights, RGB ambient lights, etc.
Suggest Age: 8 +
Maqueen is accessible to Mind+ Programming platform now. Mind+ is a graphical programming platform from DFRobot, supporting Python, Arduino, and other programming platforms. At present, Mind+ has been applied to all kinds of sensors, modules, and related educational products.
Light-operated Sprite:
Line Tracking:
FEATURES
- Exquisite appearance and lively colours, popular with kids
- No need to install it, get started in minutes
- The latest Maqueen 4.2 core, a stable and steady performance
- Support micro:bit V1 and V2 and Maqueen Mechanic Kit
APPLICATIONS
- STEM Education
SPECIFICATION:
Maqueen Lite:
- Supply Voltage: 3.5V~5V DC ( Three AAA batteries ）
- Infrared Line-tracking Sensor (High/low level) x 2
- Buzzer x 1
- Infrared Receiver (NEC encode) x 1
- LED Car Lights (High/low-level control) x 2
- RGB Ambient Light (Full 16 million colours) x 4
- SR04 Ultrasonic Interface (5V) x 1
- I2C (3.3V) x 1
- Servo Port (S1 S2) x 2
- Gravity Expansion Port (P0, P1, P2) x 3
- N20 Metal Gear Motor x 2
- Motor Reduction Ratio: 1:150
- Maximum Rotate Speed: 133 rpm
- Motor Drive Mode: PWM
- Support Wheel Material: POM
- Vehicle Wheel Material: ABS
- Tyre Material: eco-friendly rubber
- Programming Method: MakeCode, Mind+
- Dimension: 81x 85 x 44mm/3.19 x 3.35 x 1.73” (micro:bit not included)
- Weight: 75.55g (Battery, micro:bit, and peripheral accessories not included)

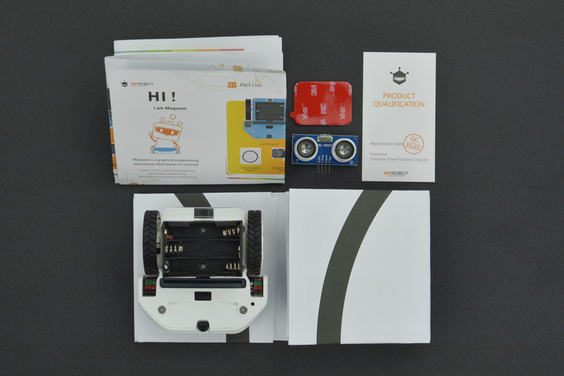

What’s in the box:
- Maqueen Lite Vehicle Body x1
(Note: Motors, vehicle wheels, support wheel, skin, and battery holder have been installed before delivery) - H-SR04 Ultrasonic Sensor x1
- Line-tracking Map x1
